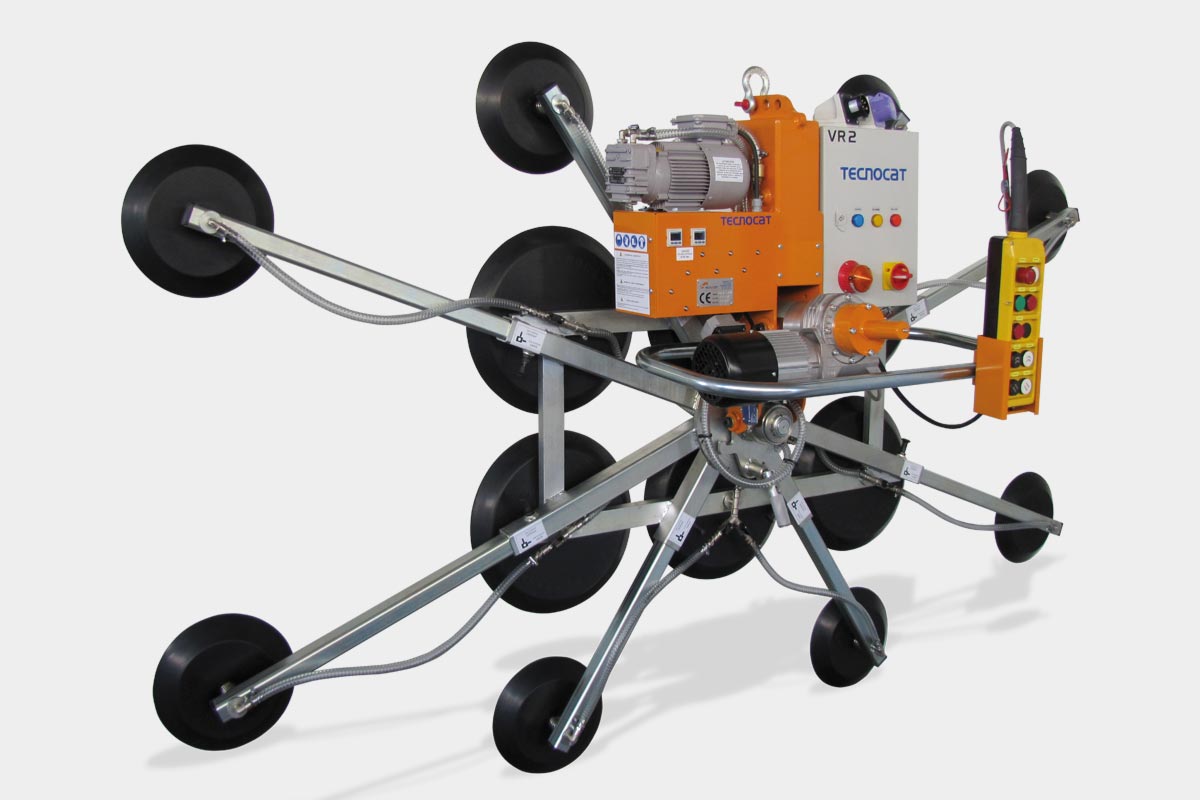

VR2-GB6 | VR2-GB6+8

VR2-GB6 equipment is compact, and with a large load capacity. It has a double safety vacuum circuit for the facilities, according to the EN-13155 standard.

It is highlighted the electric motorized tilting capacity, very useful for complicated installations, with which the tilting from 0° to 90° can be balanced.

It works only with a multi-voltage electrical connection, which allows it to be plugged in regardless of the type of voltage of the electric net. It incorporates load and vacuum indicators for each circuit, in addition to a security alarm.

4 central plates are large in diameter and adding the extensions (model VR2-GB6+8) allows to increase the grip surface and capacity for larger sheets.

Thanks to the wired keypad it is very easy and safe to manipulate the equipment, anyway, MI-100 wireless keypad is highly recommendable and useful.

The included metal box makes it easy to transport and protect the equipment.

VR2-GB6 Data

Maximum load capacity 1440 kg
Maximum load capacity according to EN13155 720 kg
Equipment weight 154 kg

VR2-GB6+8 Data

Maximum load capacity 1460 kg
Maximum load capacity according to EN13155 1120 kg
Equipment weight 202 kg

Common Data

Equipment produced according to EN13155 OK
Nominal electrical power 950 W
Manually rotating equipment 90° - 180° - 270° - 360°
Pushbutton cable length 3 m
Electrical power 200-500 VAC (50-60 Hz) +24 VDC
Vacuum system air flow 83 L/min
Motorised tilting equipment 0° - 90°
Energy autonomy by batteries -
Equipment support system OK

VR2-GB6 Drawings

VR2-GB6+8Drawings
