CLA | CLAW

CLA Data

Classifier-sizes 3700x2600 mm
Nominal electrical power 3 kW
Pneumatic supply 7 bar [100 psi] - 10 l/min

CLAW Data

Classifier-sizes 3700x2600 mm
Nominal electrical power 3 kW
Pneumatic supply 7 bar [100 psi] - 10 l/min

CLA is the motorized semi-automatic system for sorting and storing sheets of glass or other materials up to 3700mm x 2600mm, in units or packages, and which optimizes warehouse space in the factory, improving mobility and production.

It works as a motorized opening filing cabinet by means of a push-button system activated by the operator that guarantees maximum security thanks to its automatic locking system in the event of not being positioned correctly and which prevents possible material and personal damages.

There are many possible combinations depending on the needs in each case, therefore, support base positions can be combined in different measures, from 110mm to 400mm.

As an option, there is the CLAW model, which increases the vertical support surface on the metal frame of the racks.

A Max. Weight B
CLA-100 / CLAW-100 110 mm 2000 kg 205 mm
CLA-150 / CLAW-150 150 mm 2500 kg 245 mm
CLA-200 / CLAW-200 200 mm 3500 kg 295 mm
CLA-250 / CLAW-250 250 mm 4500 kg 345 mm
CLA-300 / CLAW-300 300 mm 5500 kg 395 mm
CLA-350 / CLAW-350 350 mm 6500 kg 465 mm
CLA-400 / CLAW-400 400 mm 7500 kg 515 mm

CLA

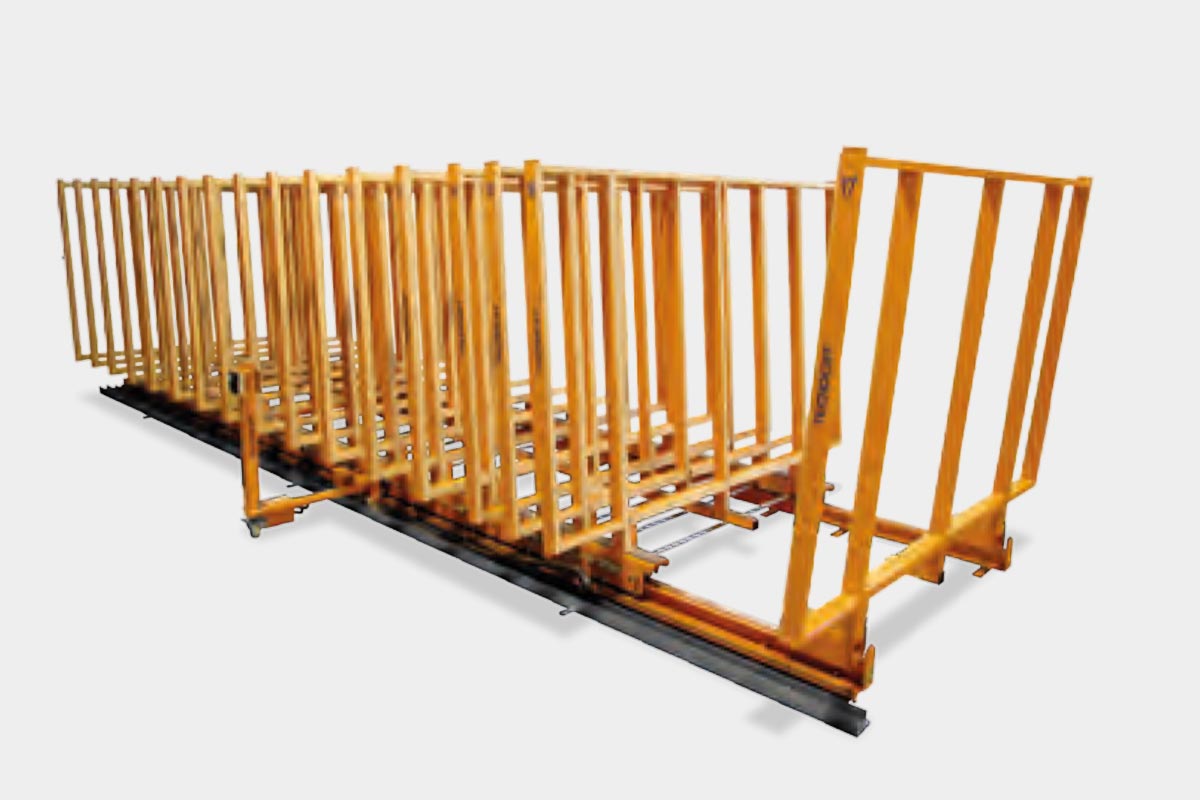

CLAW

CLA | CLAW

L (mm) = ∑B + 850 (O) + 345

TILTING SECURITY SHAPE
