vn7-b4

VN7-B4 Data

Maximum load capacity 600 kg
Equipment weight 140 kg

VN7-B4+4 Data

Maximum load capacity 600 kg
Equipment weight 160 kg

common data

Pneumatic supply 7 bar - 200 l/min
Equipment support system OK
Vacuum system air flow 40 L/min
Pneumatic tilting equipment 0° - 90°

VN7-B4

Tilting vacuum equipment from 0º to 90º with pneumatic power supply, specifically designed for horizontal glass handling processes such as horizontal CNC machines, laminators, tempering furnaces, cutting tables, and more. Its quick and precise movement ensures ergonomic and efficient operation.

With a load capacity of 600 kg, it is equipped with extensions that provide additional safety when handling large-format pieces.

The control handles automatically adjust their position during tilting for enhanced safety.

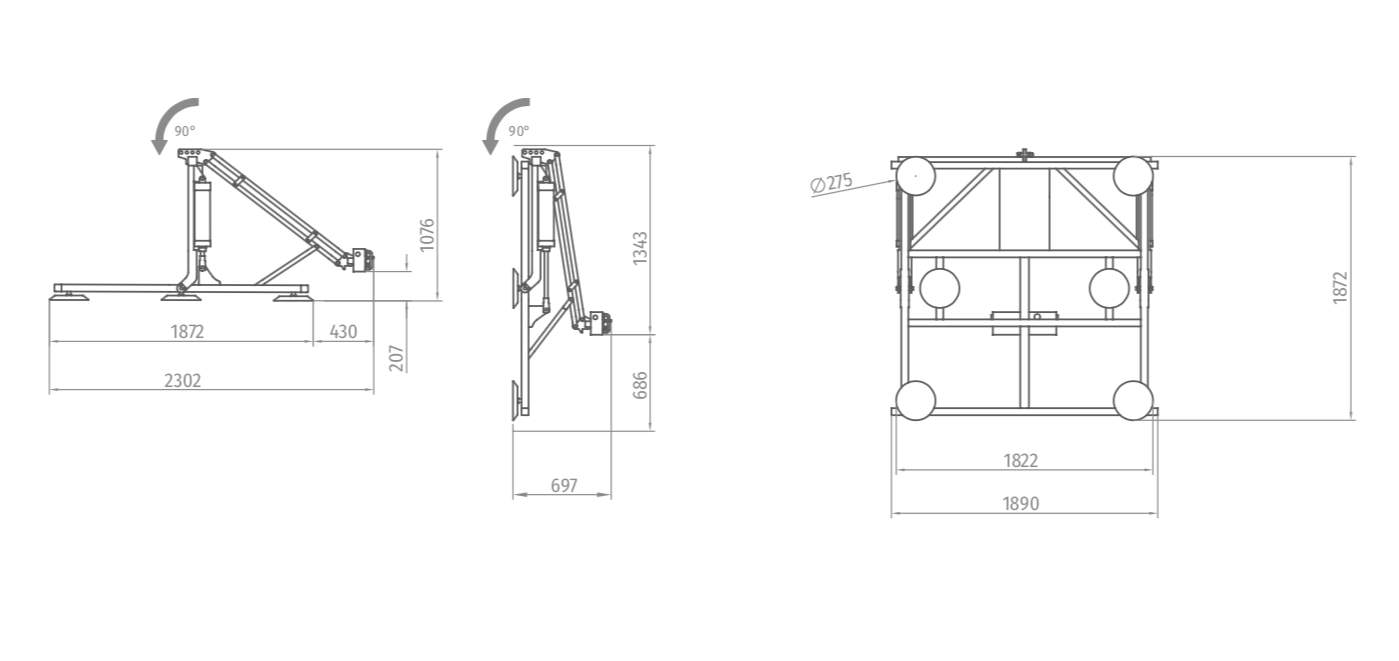

VN7-B4 DRAWINGS

VN7-B4 esquema

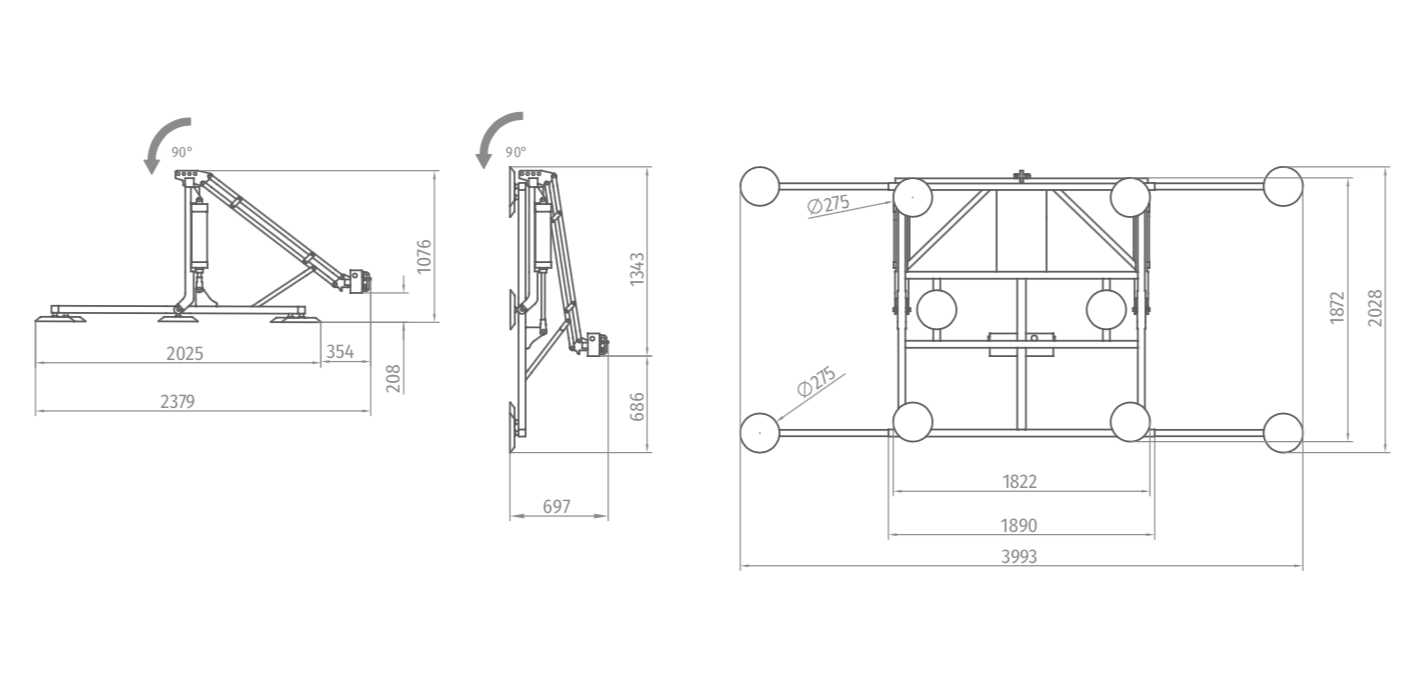

VN7-B4+4 DRAWINGS

VN7-B4+4 esquema
