FE23-1500 | FE23-1500+4

common data

Equipment produced according to EN13155 OK
Nominal electrical power 480 W
Wireless pushbutton OPTIONAL
Pushbutton cable length 3 m.
Motorised tilting equipment 0° - 90°
Vacuum system air flow 166 L/min
Equipment support system OK
Electrical power 200 - 500 VAC (50 - 60 Hz)
OK

FE23-1500 DATA

Maximum load capacity 1500 kg
Equipment weight 522 kg

FE23-1500+4 DATA

Maximum load capacity 1500 kg
Equipment weight 622 kg

"Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat. Duis aute irure dolor in reprehenderit in voluptate velit esse cillum dolore eu fugiat nulla pariatur. Excepteur sint occaecat cupidatat non proident, sunt in culpa qui officia deserunt mollit anim id est laborum."

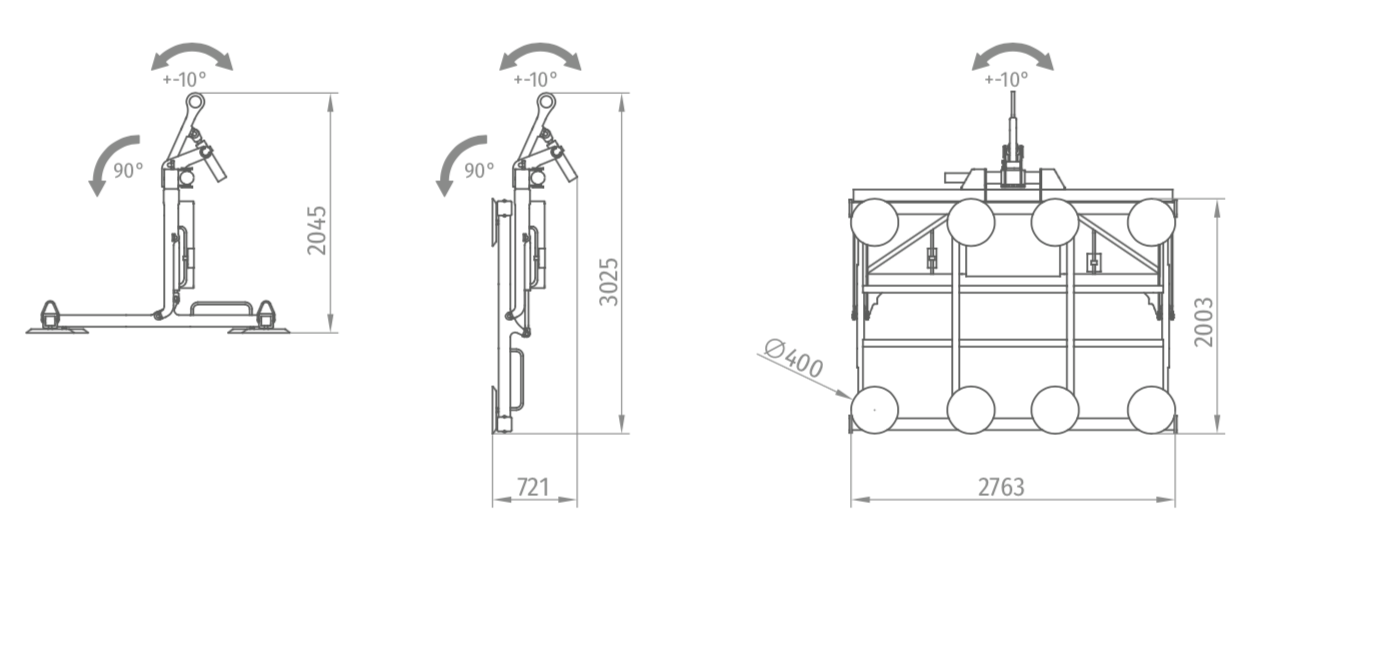

FE23-1500 DRAWINGS

FE23-1500 esquema

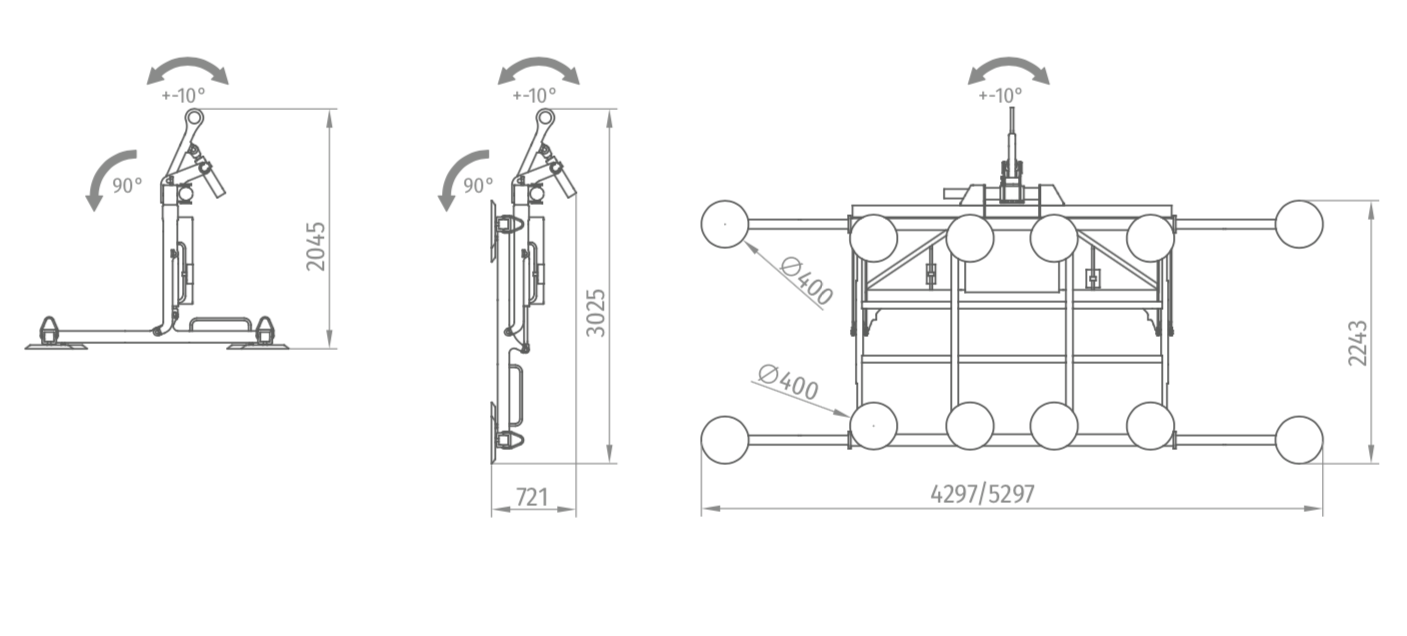

FE23-1500+4 DRAWINGS

FE23-1500+4 esquema
