CL-B

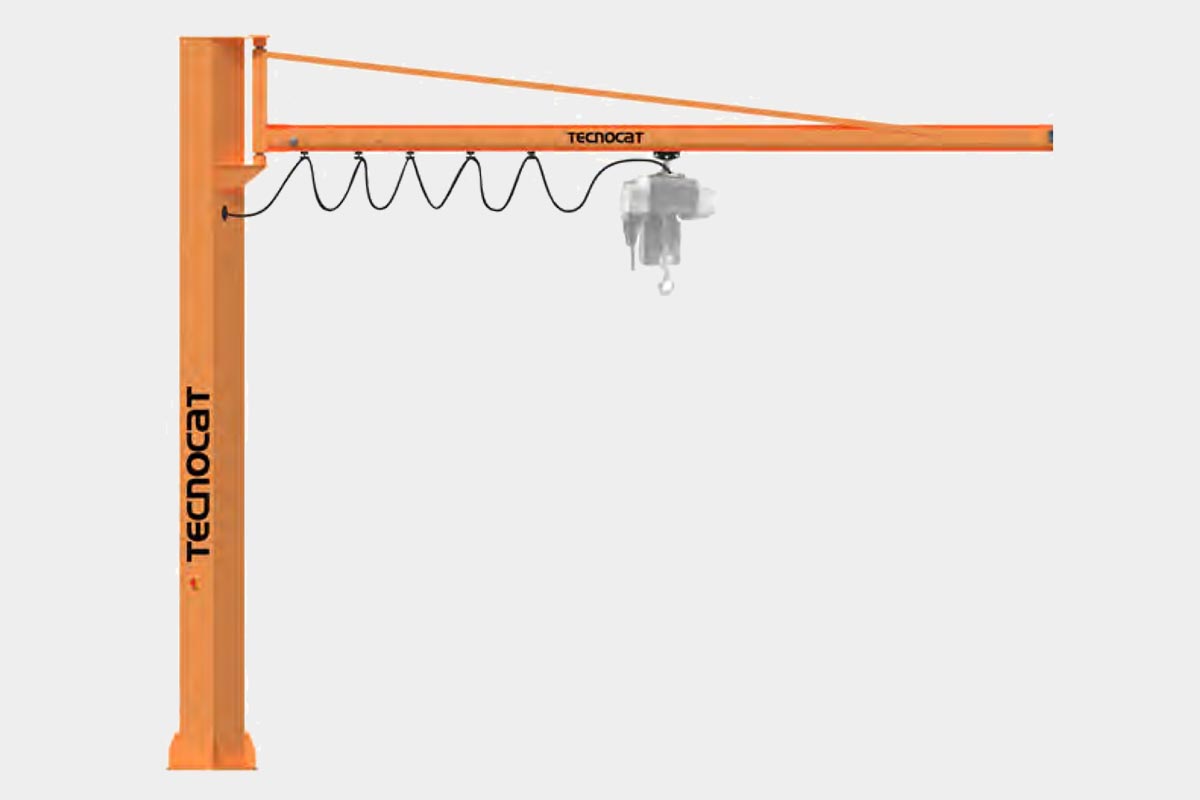

CL-B equipment is lifting system composed by crane arm and column support with load capacity up to 500Kg.

There are 4000, 5000, 6000 and 7000mm long arm measurements and the rotation angle is 270°.

Jib crane movements are manual.

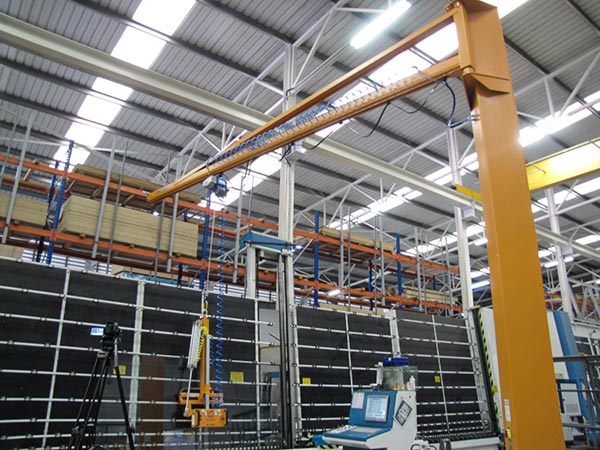

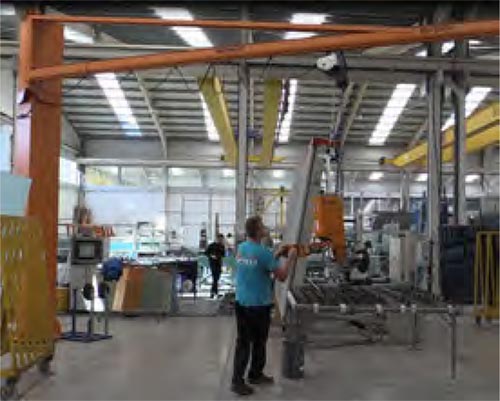

Thanks to height and beam length, this is the perfect equipment for working on processing lines that require agility of movements on a wide work area. Installed in the correct location, it is ideal for working in edger machines, entrance or exit on double glazing lines, CNC, laminating lines, entrance or exit on tempering furnaces, cutting tables, aluminum assembly for windows and doors, washing machines, etc.

The CL-B is installed using reinforced concrete foundation. This guarantees excellent stability whichever load is.

As usual, elevation process must be done by means of a hoist, which is not included with CL-B.

OPTIONAL:

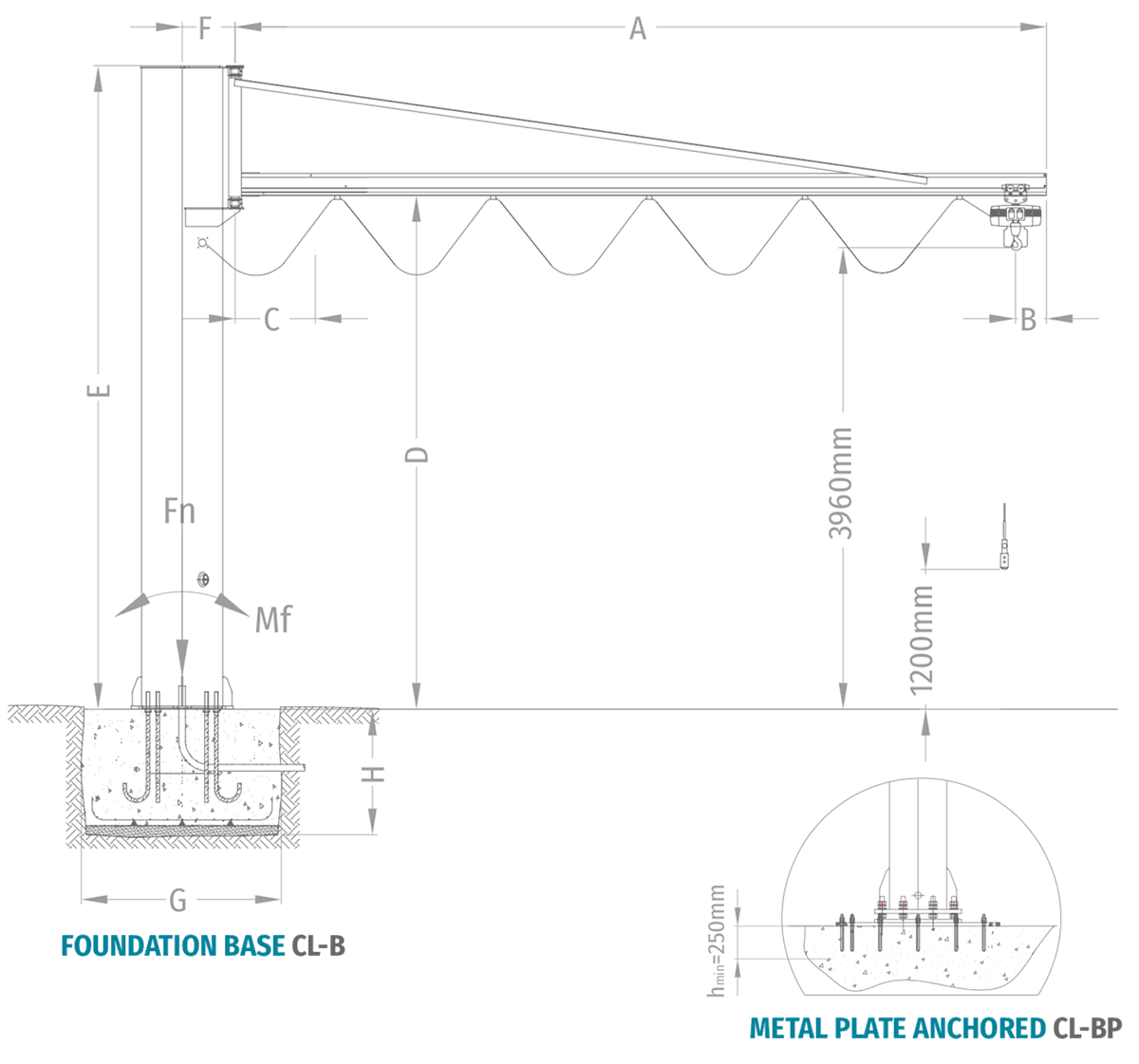

CL-BP: The column can be anchored to the pavement using a metal plate and chemical bolts.

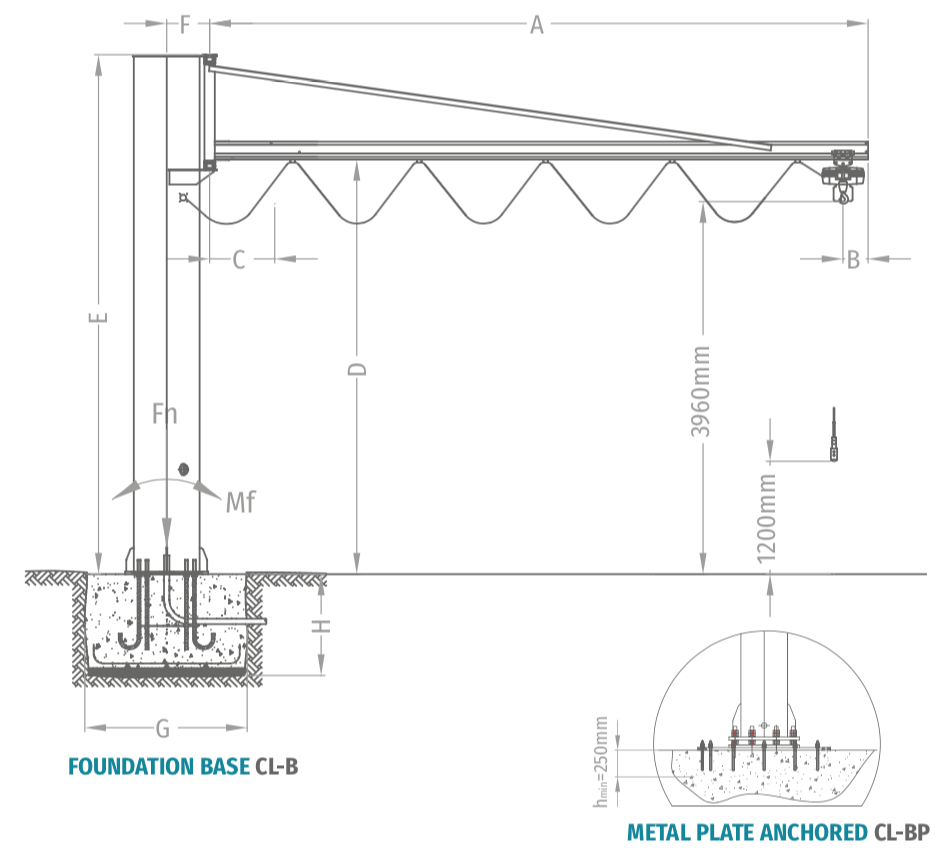

CL-B Data

Maximum load capacity Lifting crane usable rotation A
(kg.)		 B
(°)		 C
(mm)		 D
(mm)		 E
(mm)		 F
(mm)		 G
(mm)		 H
(mm)		 Mf
(kNm)		 Fn
(kN)
CL‑B4‑250 250 kg 270° 4000 140 932 4400 5250 350 1400 900 20,7 11,2
CL‑B5‑250 250 kg 270° 5000 140 932 4400 5250 350 1500 900 25,2 11,5
CL‑B6‑250 250 kg 270° 5795 140 932 4400 5250 350 1600 900 29,9 11,7
CL‑B7‑250 250 kg 270° 7000 140 1080 4400 5250 455 1700 900 37,7 14,5
CL‑B4‑500 500 kg 270° 4000 140 932 4400 5250 350 1600 900 35,2 14,4
CL‑B5‑500 500 kg 270° 5000 140 932 4400 5250 350 1700 900 43,4 14,7
CL‑B6‑500 500 kg 270° 5795 140 932 4400 5250 350 1900 1100 50,9 14,9
CL‑B7‑500 500 kg 270° 7000 140 1080 4400 5250 455 2000 1100 62,5 17,7

CL-B 250/500

Optional

  • HOIST 250KG. OR 500KG.
  • METAL PLATE BASE
