XE3-5000G

"Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat. Duis aute irure dolor in reprehenderit in voluptate velit esse cillum dolore eu fugiat nulla pariatur. Excepteur sint occaecat cupidatat non proident, sunt in culpa qui officia deserunt mollit anim id est laborum."

XE3-5000G Especificaciones

Electrical power 200-440 VAC (50-60 Hz)
Nominal electrical power 400 W
Equipment produced according to EN13155 OK
Motorised rotating equipment 0° -360° SIN FIN
Pushbutton cable length 3 m
Wireless pushbutton OPCIONAL
Vacuum system air flow 166 L/min
Motorised tilting equipment OK
Energy autonomy by batteries OK - DURACIÓN 12 h APROX.
Equipment support system OK
OK

XE3-5000G 20 VENTOSAS

Maximum load capacity 2500 kg
Equipment weight 1342 kg

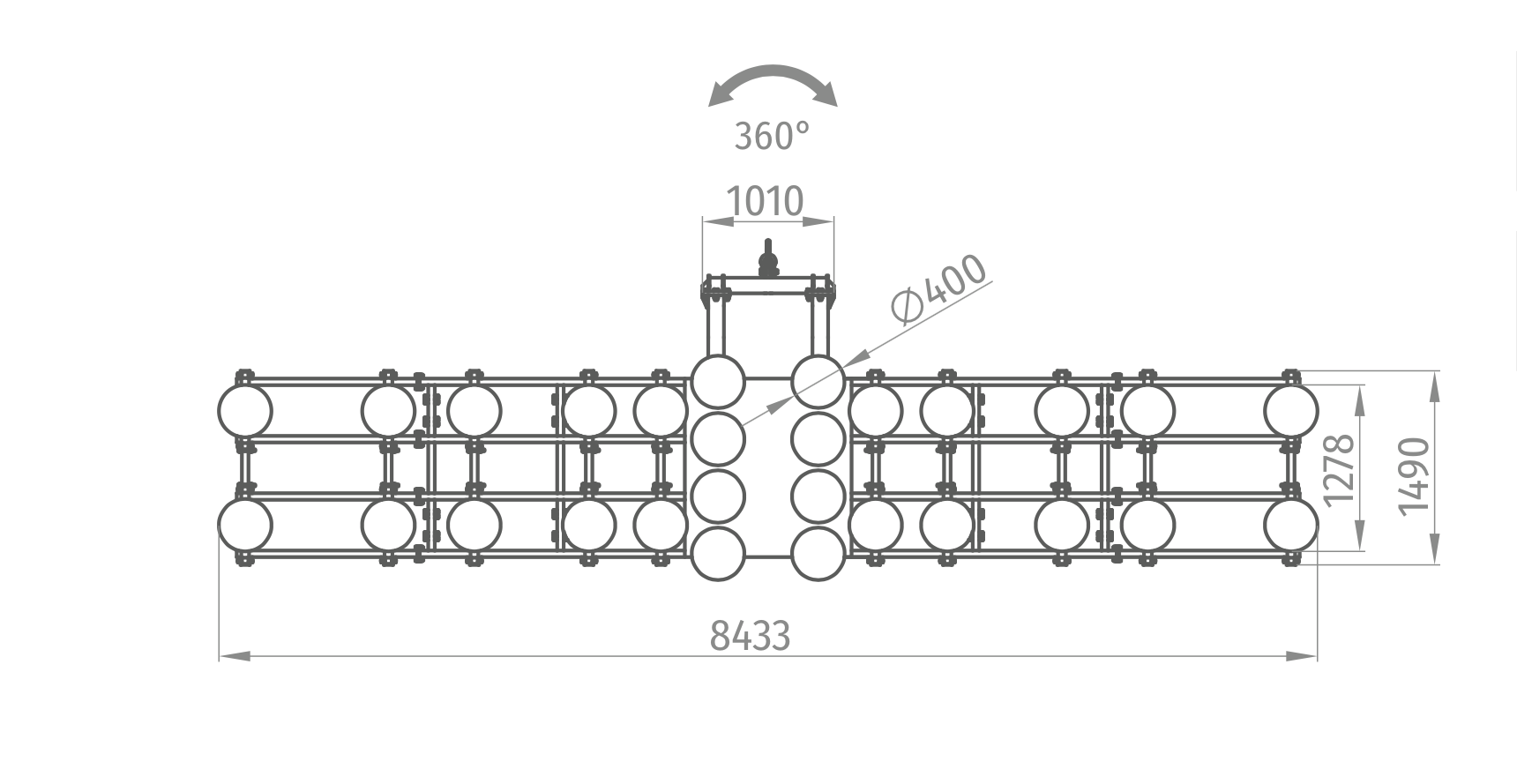

XE3-5000G 28 VENTOSAS

Maximum load capacity 3000 kg
Equipment weight 1560 kg

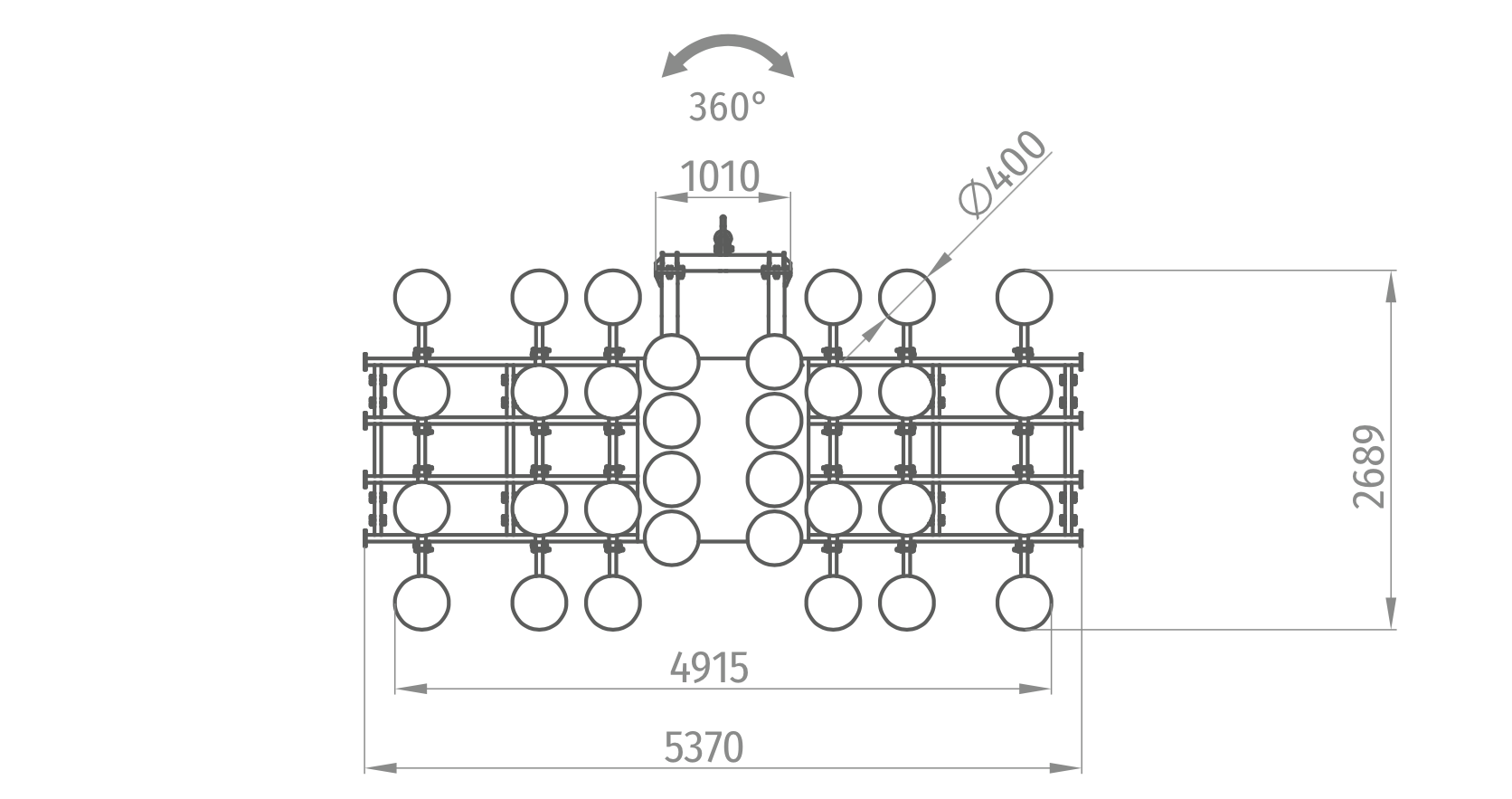

XE3-5000G 32 VENTOSAS

Maximum load capacity 4000 kg
Equipment weight 1438 kg

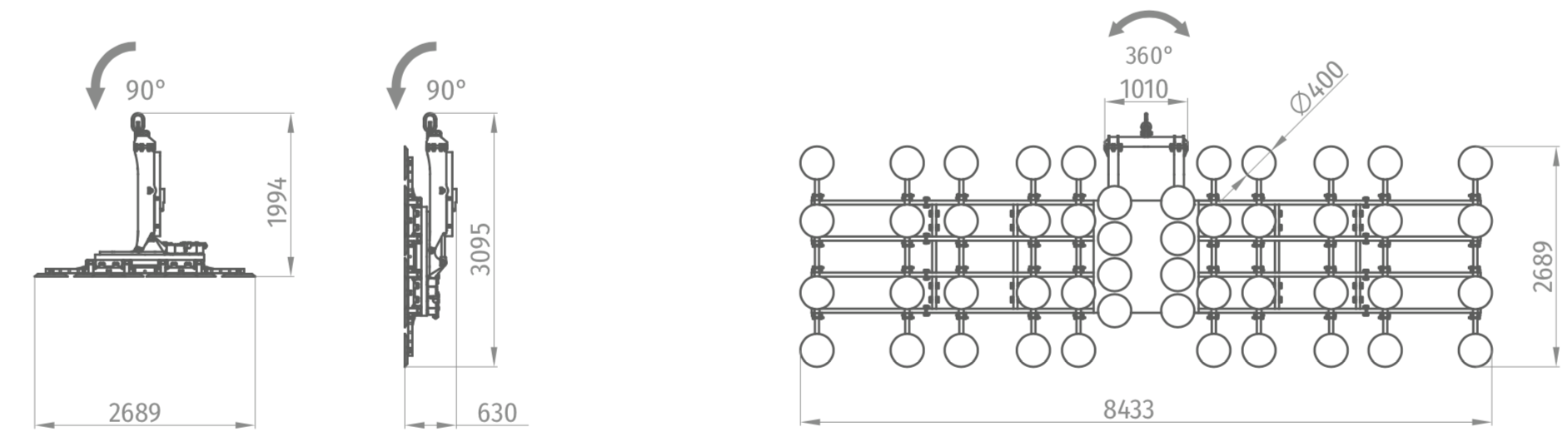

XE3-5000G 48 VENTOSAS

Maximum load capacity 5000 kg
Equipment weight 1750 kg

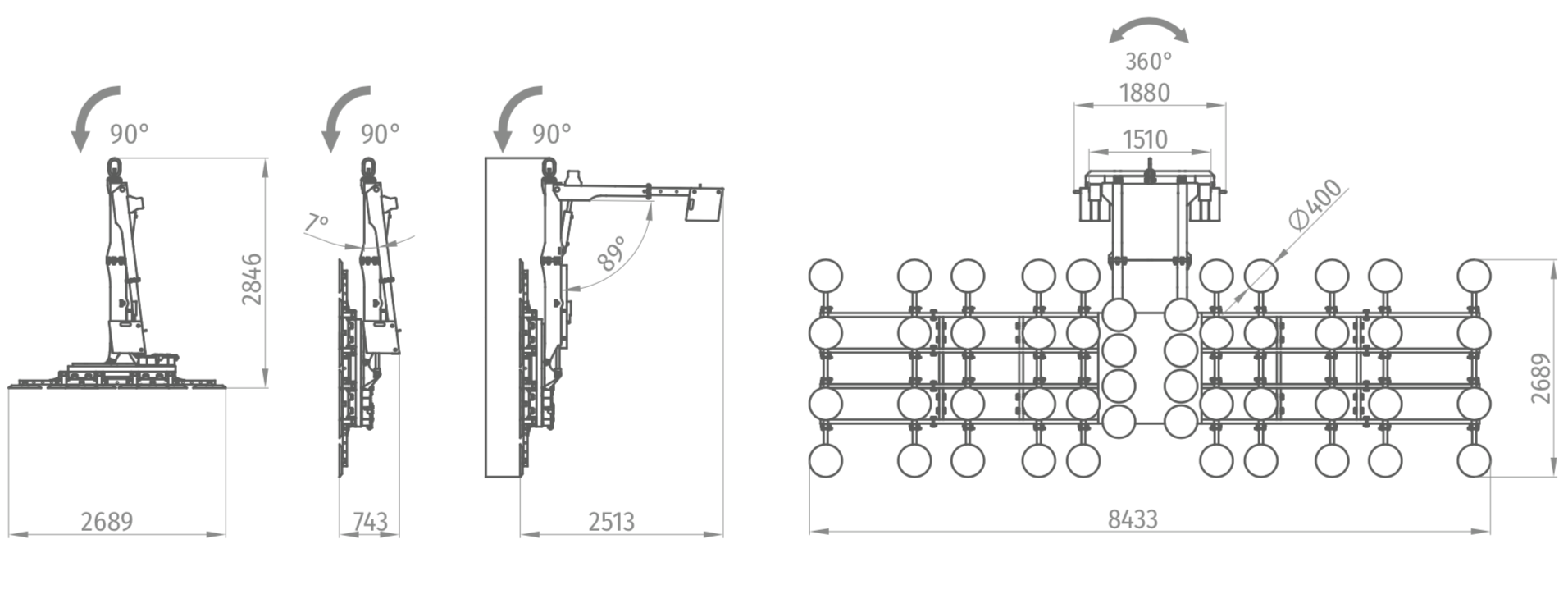

XE3-5000G + CW3-6000 48 VENTOSAS

Maximum load capacity 5000 kg
Equipment weight 2914 kg

OPCIONAL

MI-04A WIRELESS REMOTE CONTROL

XE3-5000G 20 VENTOSAS

XE3-5000G 28 VENTOSAS

XE3-5000G 32 VENTOSAS

XE3-5000G 48 VENTOSAS

XE3-5000G + CW3-6000 48 VENTOSAS
